How to Setup Serial Console Cable
Use the following procedure to attach a serial console cable.

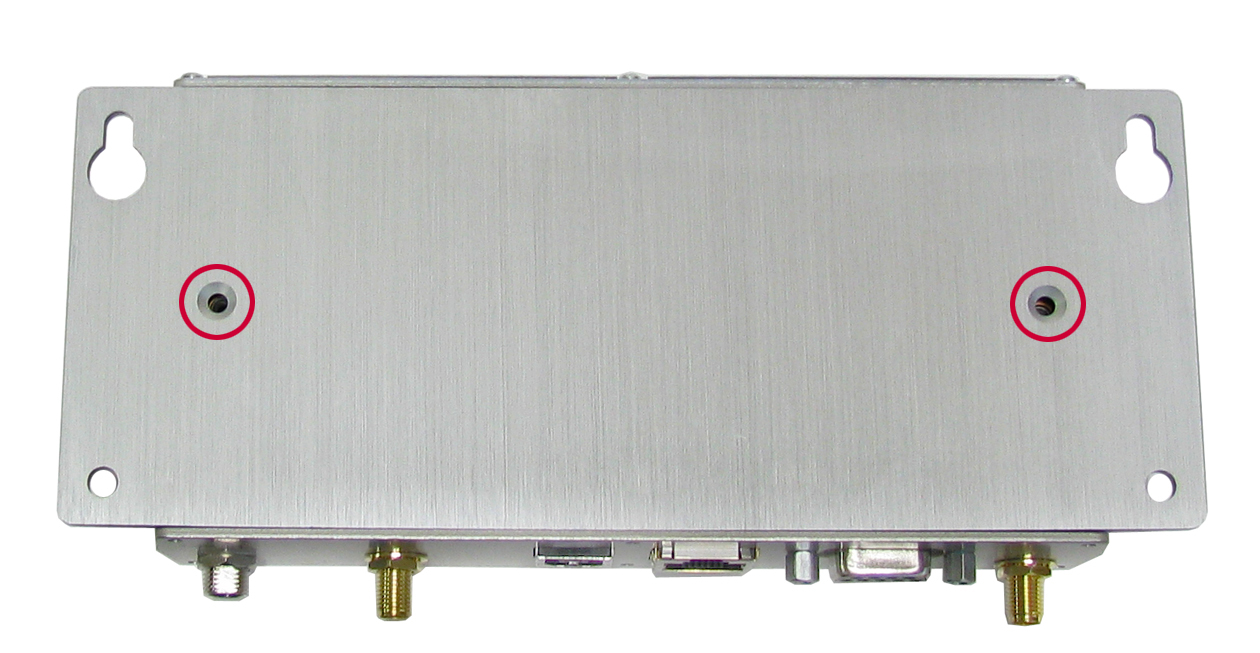

Step 1: Remove the two screws from the bottom of the chassis.

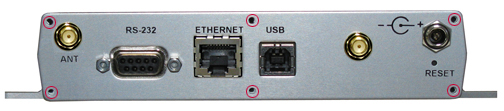

Step 2: Remove the six screws from the back of the chassis.
 |
 |
| R0.0 | R1.0 |

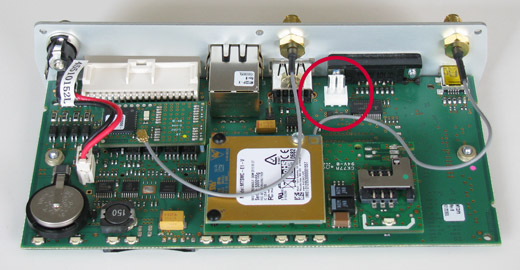

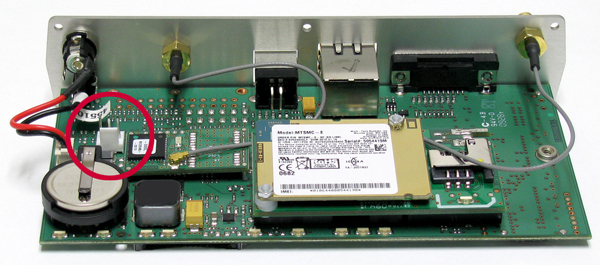

Step 3: Find the 3-pin connector used for the serial console port.
 |
 |
| R0.0 | R1.0 |

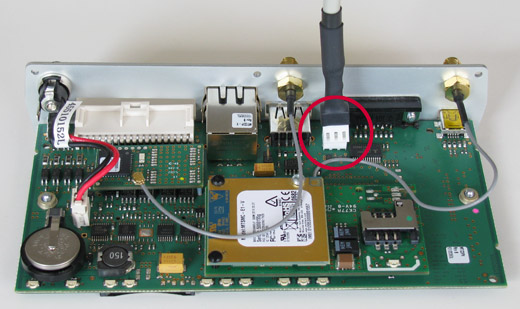

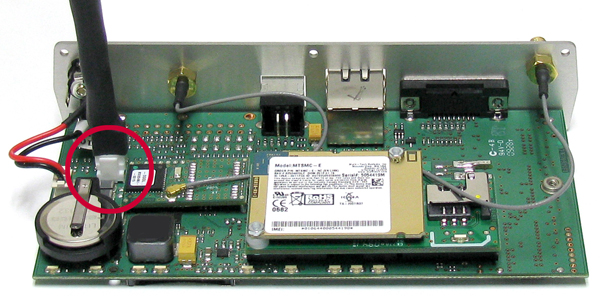

Step 4: Connect serial console cable to 3-pin connector.
